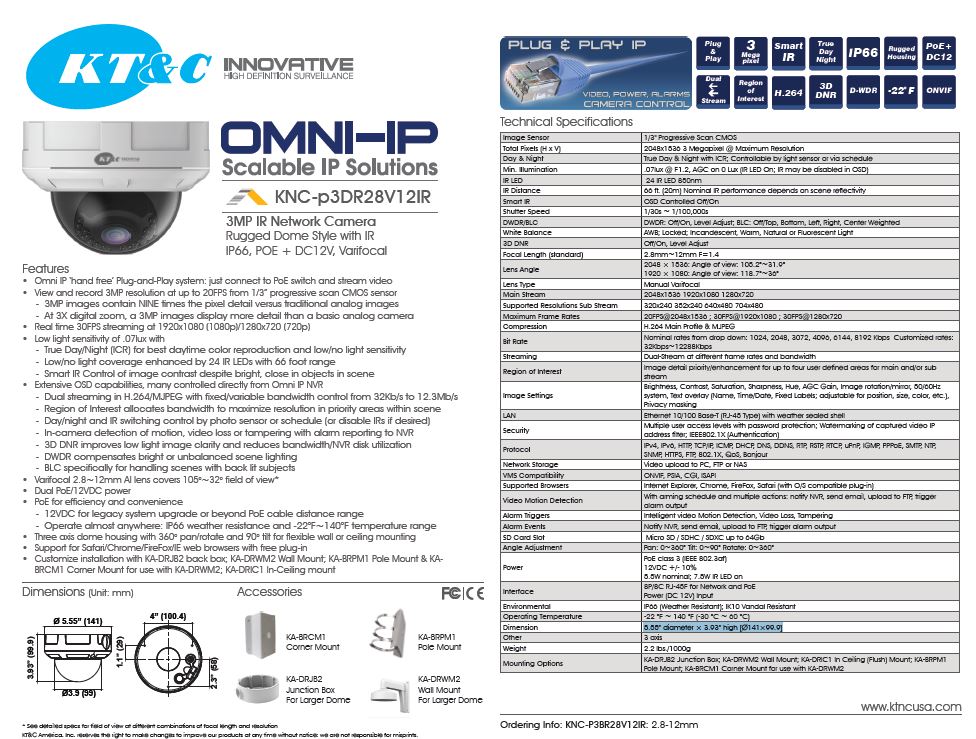

KT-p3DR28V12IR
3MP IR Network Camera Rugged Dome Style with IR , IP66, POE + DC12V and varifocal lensOmni IP "hand free" Plug-and-Play system:
Just connect to PoE switch and stream video
View and record 3MP resolution at up to 20FPS from 1/3" progressive scan CMOS sensor 3MP images contain NINE times the pixel detail versus traditional analog images.
At 3X digital zoom, a 3MP images display more detail than a basic analog . This dome camera has Smart IR Control of image contrast despite bright, close in objects in scene and produces Real time 30FPS streaming at 1920x1080 (1080p)/1280x720 (720p) and Low light sensitivity of .07lux with True Day/Night (ICR) for best daytime color reproduction and low/no light sensitivity Low/no light coverage enhanced by 30 IR LEDs with 100 foot range
Low light sensitivity of .07lux with
True Day/Night (ICR) for best daytime color reproduction and low/no light sensitivity
Low/no light coverage enhanced by 42 IR LEDs with 100 foot range
Smart IR Control of image contrast despite bright, close in objects in scene
This camera has Extensive OSD capabilities, many controlled directly from Omni IP NVR
Dual streaming in H.264/MJPEG with fixed/variable bandwidth control from 32Kb/s to 12.3Mb/s
Region of Interest allocates bandwidth to maximize resolution in priority areas within scene
3D DNR improves low light image clarity and reduces bandwidth/NVR disk utilization
Day/night and IR switching control by photo sensor or schedule (or disable IRs if desired)
In-camera detection of motion, video loss or tampering with alarm reporting to NVR
DWDR compensates bright or unbalanced scene lighting
BLC specifically for handling scenes with back lit subjects
Varifocal 2.8~12mm AI lens covers 105° ~ 32°field of view*
Dual PoE/12VDC power
This dome operates almost anywhere: IP66 weather resistance and -22°F ~ 140°F temperature range,PoE for efficiency and convenience and has a housing with sunshield is adjustable for 360°pan and rotation, and 90° tilt for flexible positoning
IP dome support for Safari/Chrome/FireFox/IE web browsers with free plug-in
- 1/3" Progressive Scan CMOS
- Total Pixels (H x V) 2048x1536 3 Megapixel @ Maximum Resolution
- Lens: Varifocal 2.8~12mm F=1.4
- IR LED 24 IR LED 850nm
- IR Distance:66 ft. (20m) Nominal IR performance depends on scene reflectivity
- Minimum Illumination:.07lux @ F1.2, AGC on 0 Lux (IR LED On; IR may be disabled in OSD)
- 3D DNR :Off/On, Level Adjust
- Main Stream:2048x1536 1920x1080 1280x720
- OSD menu
- Smart IR:OSD Controlled Off/On
- LAN Ethernet: 10/100 Base-T (RJ-45 Type) with weather sealed shell
- Shutter Speed 1/30s ~ 1/100,000s
- Power: PoE class 3 (IEEE 802.3af),12VDC +/- 10%,5.5W nominal; 7.5W IR LED on
- Dimension:5.55" diameter x 3.93" high
- Weight: 2.2 lbs./1000g
