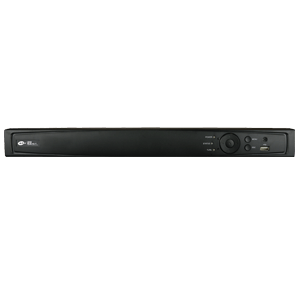

KT-TVL8:

Intelligent Video Inputs: connect 1080p/720p EZHD HD-TVI or 960H/SD analog to ANY input at any time
- Reuse existing analog cameras or choose any mix of HD/SD on new systems
- Upgrade any analog camera to megapixel at any time
- Superlative HD resolution of 1080p Full HD or 720p HD for amazing image quality
- Useful digital zoom on live view and playback
- Field select 1080p or 720p, 30/25 Hz or 60/50 H

Operation over ?almost any? wire
- More than 1000 feet on standard RG59 coax
- More than 1500 feet on RG6
- More than 500 feet on UTP (one pair from a Cat5e cable, using optional KA-HDBAL1 balun pair)

Display Live/Record 2.1 Megapixel 1920x1080 (1080p), 1 Megapixel 1280x960 (720p), 960x480 (WD1/960H), 704x480 (SD)
- 1080p recording at up to 12FPS per camera
- Real time recording on any/all channels at 720p, WD1 or SD resolution
- Playback any/all cameras at up to record rate
- Independent configuration for each channel: resolution main/sub-stream, FPS, bit rate, image quality, etc.

Up-the-cable control [UTC] to access compatible camera OSD menus from the DVR PTZ controls (local or remotely)

Triple Technology Recording: Connect additional OMNI-IP Plug-and-Play IP cameras (4+1, 8+2, 16+2) up to 1080p resolution without sacrificing BNC input

 H.264 Compression for efficient HDD utilization
- One (4, 8 channel) or 2 (16 channel) internal hard drives for up to 6 or 12Tb of internal storage
- Up to 8 network disks (8 NAS disks, or 7 NAS disks +1 IP SAN disk)
- Simultaneous high bandwidth recording plus sub-stream recording for reduced bandwidth remote live viewing
- Watermarking for validation of recorded video
- Record scheduling per-camera, with HDD quotas, holidays, parameter change on alarm/event

Pentaplex Operation (Simultaneous live, recording, playback, archiving and remote viewing)

Easy router setup for remote access: uPnP/NAT automatically sets up port forwarding (router must support/allow uPnP)

HDMI & VGA Main monitor outputs for up to 1080p HD display detail

User friendly GUI with graphical icons, visual indicators and multiple language support
- Easy to use on-screen menus include digital zoom and instant playback of recent video
- Operate using front panel controls, wheel mouse or optional IR remote

Quickly locate and review event video
- Search by date/time, or preview images by pointing along a color coded timeline of record type
- Tag video of interest for easy retrieval or export
- Play based on results of extensive event/alarm log search
- Use ?Smart Search? to define an area of interest; the DVR quickly reviews recorded video to list instances of motion in that area for review by the operator
- Use Video Content Analysis event detection on one BNC channel
    - Line crossing (with direction) up to four lines
    - Area intrusion (with loitering time) up to four areas
    - Rapid fast forward can scan quickly between VCA events, yet plays events at normal speed

Digital Zoom with Virtual PTZ in Live & Playback

Privacy masking (4 zones) to block observation of specific areas within the field of view

Audio Input and Output for recording and/or two way audio

Ethernet interface for remote network viewing and control, and to connect IP cameras

Multiple Control Inputs: local mouse/hand held IR remote controller (mouse included); web browser and CMS controls

On-screen PTZ control via mouse or IR remote

USB 2.0 ports on front and rear panels for video archive and mouse usage

Free DDNS Service ? static IP address is not required for reliable remote access

IE, Chrome, Firefox and Safari browser Web clients

Free Multi-Site Windows and MAC OMNI CMS can display up to 64 live/4 playback views

Remote configuration support from built-in web interface and/or free OMNI CMS program

Free iOS and Android apps:
- Scroll though 16 display live views
- Playback specific cameras by date/time plus easy slider control
- Audio monitoring support
- PTZ and relay control
- Up to 16 camera views from HD tablets (HD app)

EZHD-TVL8: 8 Ch, No Drive
EZHD-TVL8/1TB: 8 Ch, 1 TB
EZHD-TVL8/2TB: 8 Ch, 2 TB
EZHD-TVL8/4TB: 8 Ch, 4 TB

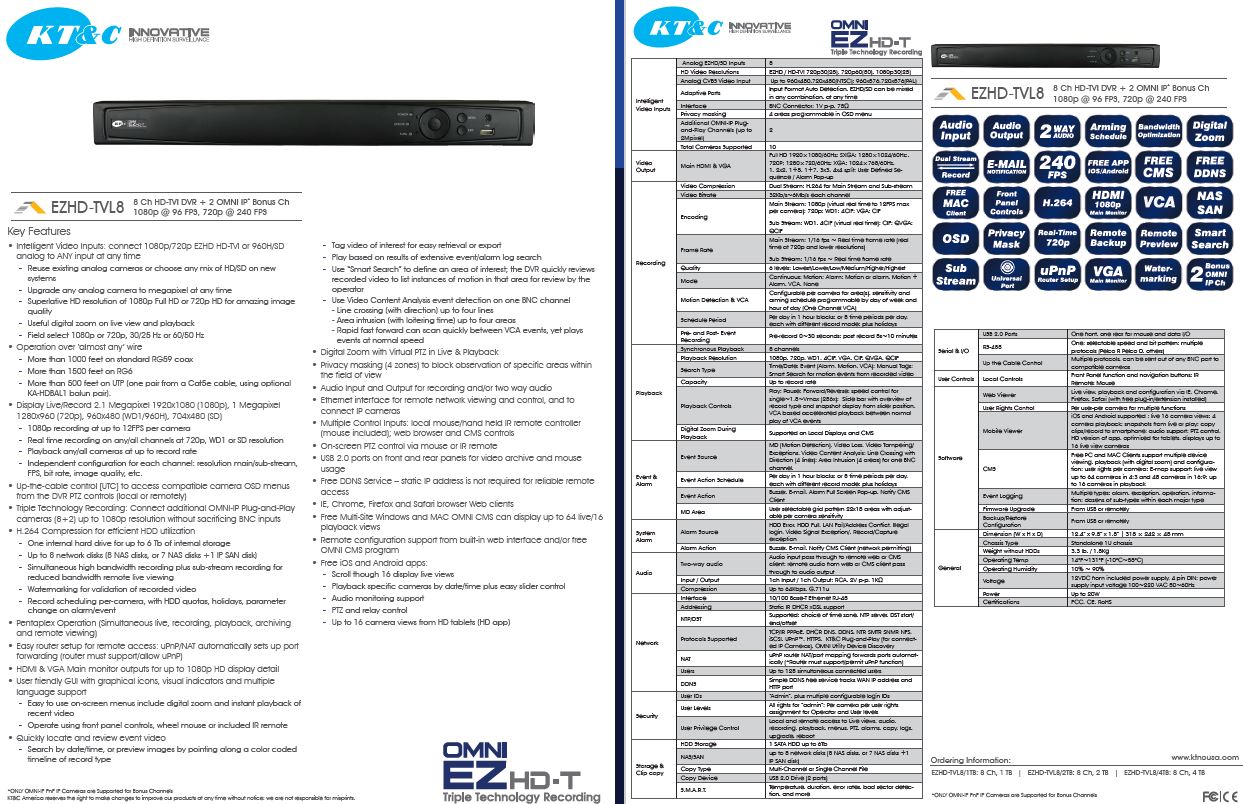

Download Specification Sheet
