Cortex Security with AI Professional Surveillance

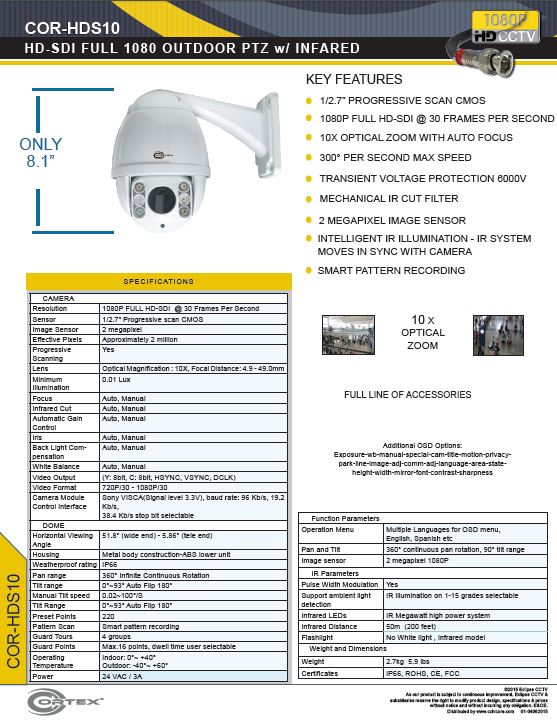

COR-HDS10

1080P Full HD 10X PTZ Dome with Long Range Infared

HD SDI infrared PTZ Dome

This premium quality outdoor security PTZ dome has a 2 megapixel image sensor and megapixel rated zoom lens. The smart pattern record, intelligent IR illumination with auto adjust and hot spot reduction give this PTZ added value. A built-in heater and fan is optional along with accessories including wall mounting bracket, ceiling bracket or corner bracket for installation..

Metal body construction-ABS lower unit

SDI - Serial Data Interface

Sometimes called Serial Digital Interface, the SDI format provides an easy to implement method of connecting advanced CCTV cameras to existing and new security networks. They use coaxial cable, so if you already have a network that uses coaxial cable you don't have to replace them. This means savings, especially on long cable runs. No new cable required, no new installers (labor charge). SDI security cameras connect directly to coax.

Auto focus

Enables this camera to focus automatically to maintain a clear image. The user can use manual focus as well under special condition to achieve desired results

Camera Module Control Interface

Sony VISCA(Signal level 3.3V), baud rate: 96 Kb/s, 19.2 Kb/s, 38.4 Kb/s stop bit selectable.

Pan Range

The COR-HDS10 has 360? continuous pan rotation, 90? tilt range.

  • 1/2.7" Progressive scan CMOS Sensor
  • Resolution 1080P FULL HD-SDI @ 30 fps
  • Effective Pixels Approximately 2 million
  • Lens Optical Magnification : 10X, Focal Distance: 4.9 - 49.0mm
  • Support ambient light detection
  • Infrared Distance 50m (200 feet)
  • Image sensor 2 megapixel 1080P
  • Infrared LEDs IR Megawatt high power system
  • 360? Infinite Continuous Rotation
  • (indoor/outdoor) IP Rating / IP66
  • OSD Menu
  • 12 VDC / 3A (24VAC models available)
