COR-454HA:High Resolution Color Security Camera Kit with Auto-Iris Control
Perfect for CCTV Camera Projects

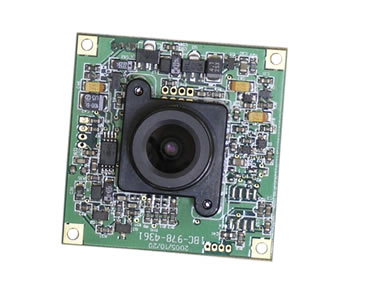

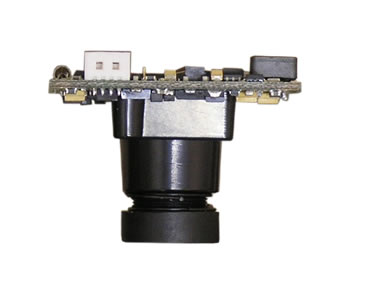

This high resolution mini color board camera has an electronic shutter and a wide angle lens, and runs on a regulated 12VDC supply (not included). It also includes technology to operate an auto-iris lens (lens not included).
Please note this is an indoor camera and if you place it outdoors you'll have to house it in such a way as to protect it from the environment, keep it cool (or warm) and dry, etc.
Most of our board cameras feature a removable (and replaceable) lens. Looking for lens options? Click here.
Please contact a Sales Representative for Specification concerning this board camera product as well as prices and availability.
- For indoor surveillance placement in do-it-yourself surveillance projects and repair.
- 1/3" color Sony CCD video sensor
- 420-line resolution
- 3.6mm board lens
- Effective pixels:
- NTSC: 512 x 492 (251k)
- PAL:512 x 582 (297k)
- Auto-iris technology present for controlling auto-iris lenses
- LENS NOT INCLUDED
- Minimum illumination 0.03 Lux
- Low light sensitive
- Auto electronic shutter (AES)
- Auto white balance (AWB)
- Auto backlight compensation (ABC)
- Attached power and video cable leads
- Power: 12VDC, 110mA (nominal)
- Power supply not included.
- Optional models: COR-454DP pinhole lens model and COR-454DA auto-iris control equipped model
